VEW LL02 RED

12 AND Gates

Product Information

The LL02 module from the original equipment manufacturer H&B can be replaced plug-and-play thanks to the redesign of the LL02 RED.

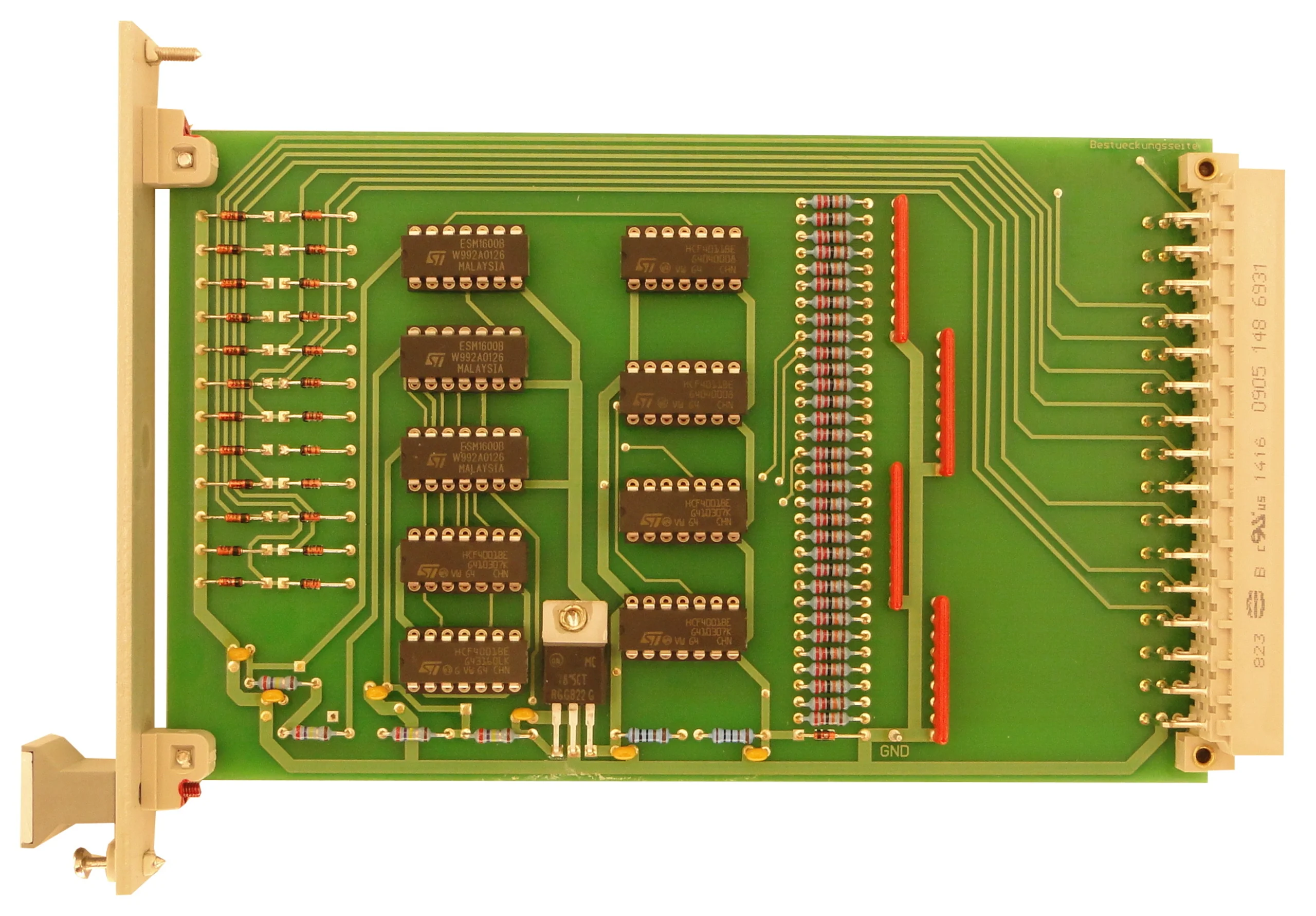

The VEW LL02 RED module contains 12 AND gates each with 2 to 4 inlets.

5 AND gates each have a negated input.

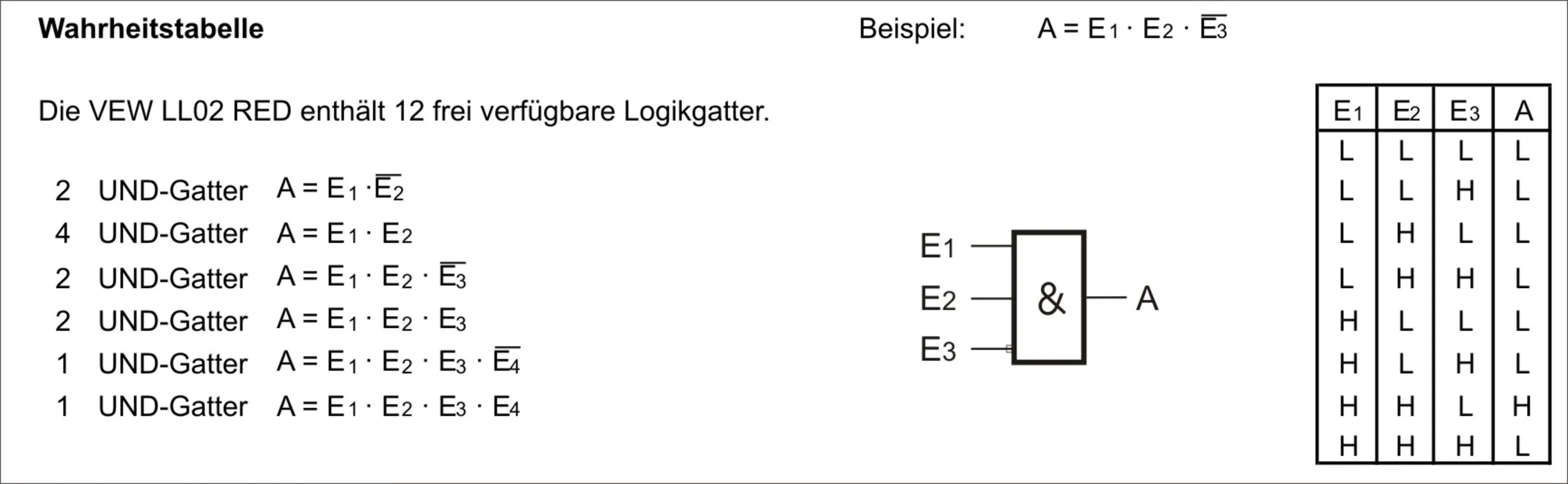

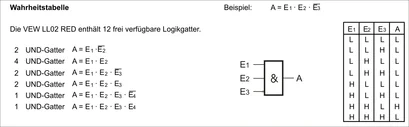

The module acts as a user-modified wired AND connection (e.g. for locks), with the following truth table.

The outlets of the gates are short-circuit proof thanks to the application of a special driver.

Technical Data


Supply voltage UV +24VDC
Power input 20mA plus load
Binary input H +24V; L 0V
Binary output H +24V; L 0V; 10mA, short-circuit-proof
Configuration Europe format 100x160mm, frontplate 4TE 3HE
