VEW 12PB01 RED

IFZ bus module

Product description

The IFZ bus module VEW 12PB01 RED is a plug and play compatible redesign of the original module for the traction control system MICAS.

There are different versions depending on the purpose:
Vers. 1: 10 outputs, open-collector, inverting.
             pull up 10kΩ
             10 inputs, potential-free 15V; com. GND
             Series resistor 2k2
Vers. 2: 10 inputs, potential-free 24V; com. GND
             Series resistor 3k3
Vers. 3: 10 outputs, open-collector, inverting.
             pull up 10kΩ
             10 inputs potential-free, 15V; com. GND
             Series resistor 2k2
Vers. 4: 10 outputs, open-collector, not inverted.
             15V; com. GND, pull up 2k2
             10 inputs potential-free, 15V; com. GND
              Series resistor 10Ω

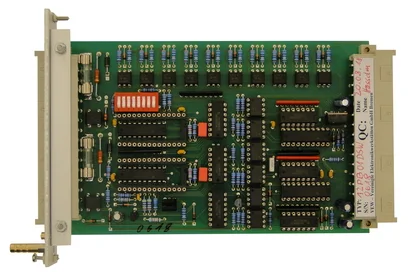

Version: VEW 12PB01 RED Vers. 4 (DSW21)
Metal frontplate with pull handle and screw stud for front connector type F32 series Z + B Basic pin header type F32 series Z + B.

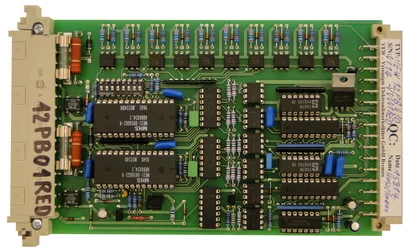

Version: VEW 12PB01 RED Vers. 1 or 3 (HHB)
Plastic screw tabs on the front connector design F32 series Z + B and basic pin header type D32.

The VEW 12PB01 module is used for the potential-free conversion of 10 binary input and output signals
between the peripheral area and the IFZ bus or vice versa.
The module has an address setting with an 8-pin DIL switch for setting the IFZ device address and can be controlled according to the set address.
The redesign module is delivered without the serial interface converter of the special application (e.g. ABB 6034.1).
The serial / parallel converters are usually available from the user.
The original existing interface converters are used by the user on two 24-pin precision contact sockets.

Samples of the various designs are available from stock.
The assemblies can be manufactured according to the respective



Data sheet

Technical data


Bus voltage min. 18V, max. 26V
Quiescent current 10mA
Shutdown at Ik> 0,6A continuously, Ik > 2,4A; tk 30ms
Current swing on response 460mA <i< 520mA at UB 25V
Operationg voltage 14,4V < US1 < 15,6V
Power consumption IS1 < 85mA
4 versions, optional execution of the application corresponds
