VEW LA3000 RED

Product Information

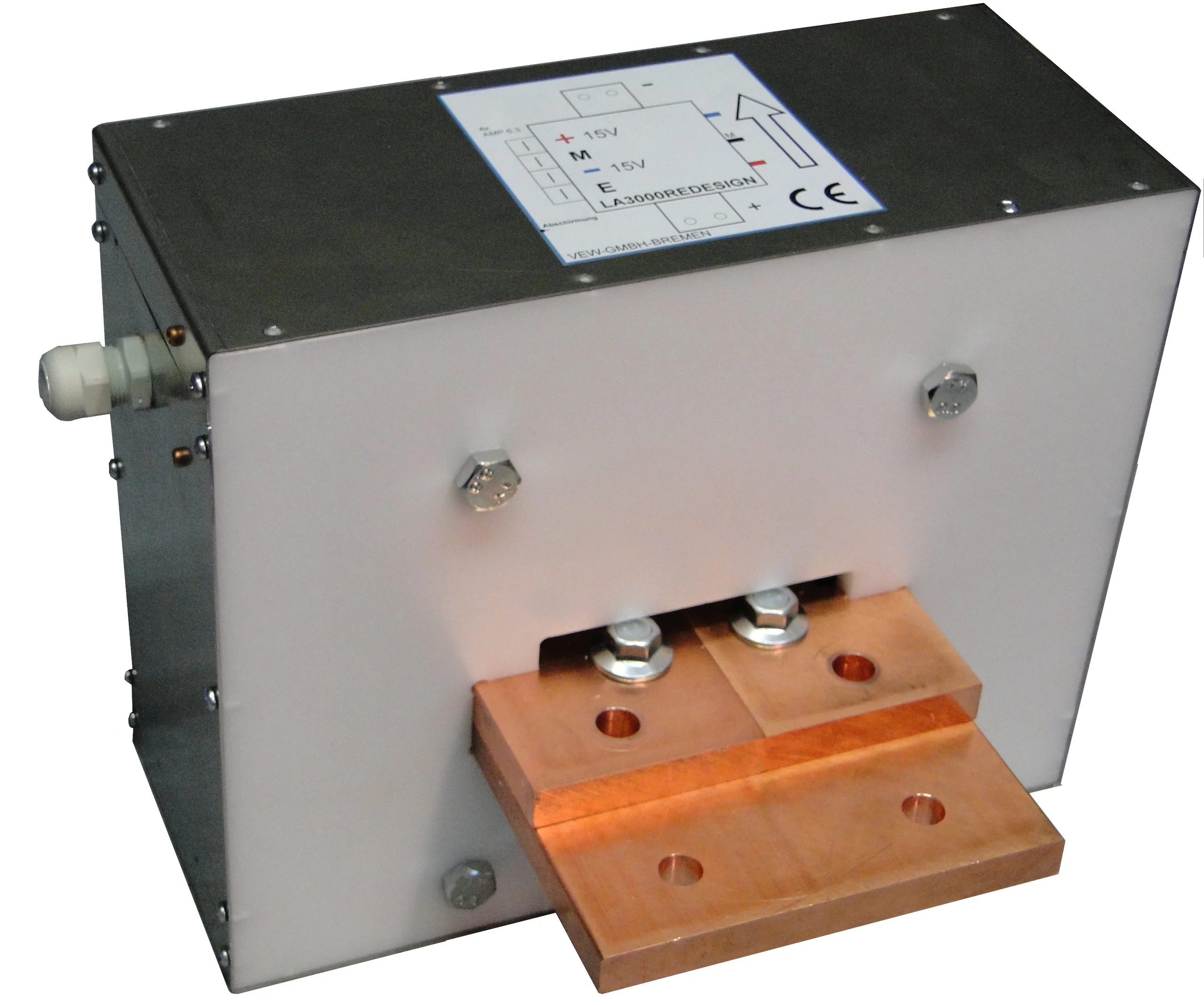

The redesigned VEW LA3000 RED current converter with a CU-powerrail of 150 mm width is dimensionally and funcionally fully compatible to the
original LA3000T from BBC.

The M12 mounting holes on the powerrails are arranged identically to the original, so that no adjustments in the application are necessary. The device
is a plug-and-play replacement, old-for-new.

The secondary connection values correspond to that of the original with ±15V DC and the internal resistance value of 9 Ohm.
The transmission factor is 1:5000.

The same design is available also with power supply of ±24V DC

Data sheet

The redesign of the LA3000T is an example of providing fully compatible deployable current converter for high current applications as plug-and-play replacements for obsolete components.
The VEW redesign current converters often are used by industry, public transport and by German Railway (DB).
