Holo Eye

Digital holographic measuring system

Product Information

The digital holographic measurement system is capable of measuring the functional surface of microcomponents in a manufacturing environment, with a production cycle time of 1 second, detecting discontinuities with a precision of <5µm.

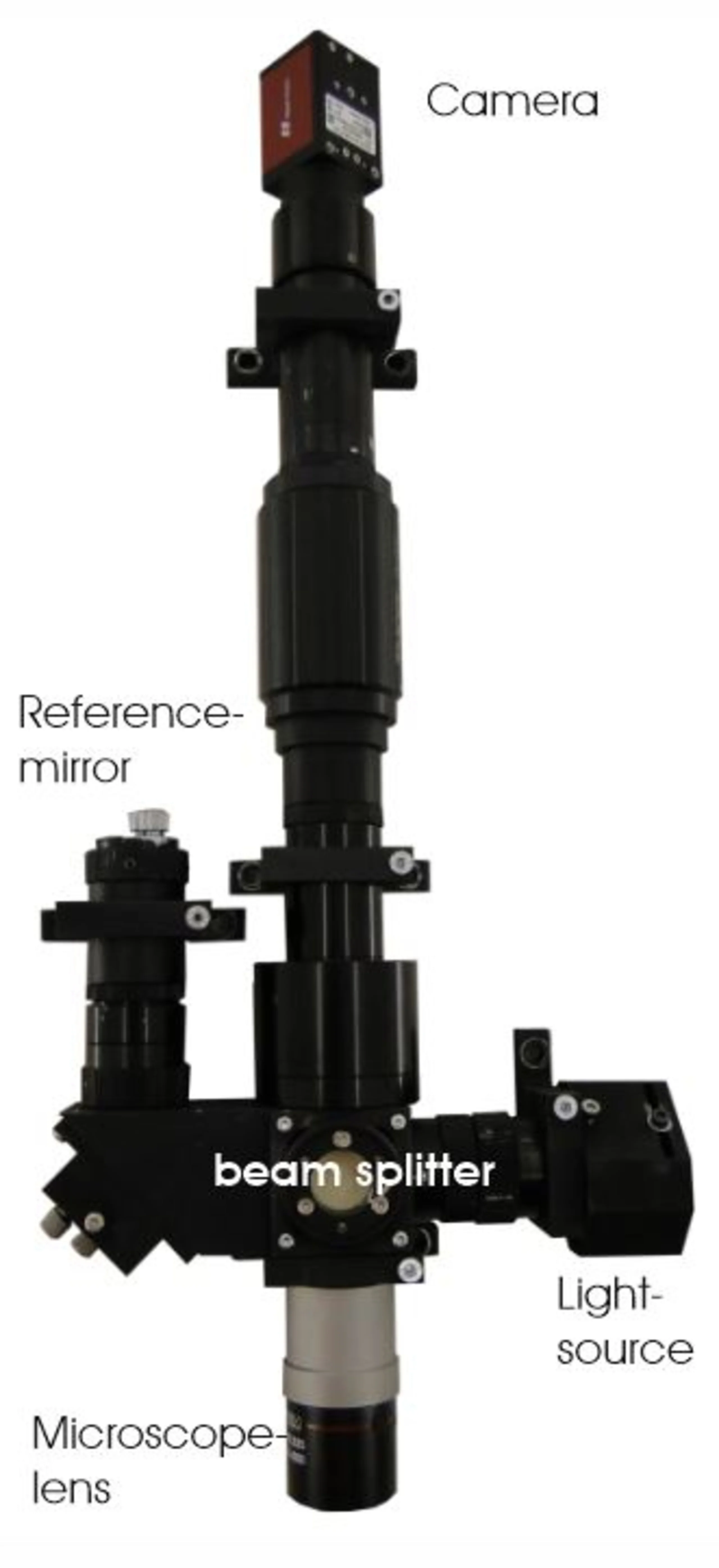

The system is based on a digital holographic microscope that operates with a working distance of 34mm to the object surface. Due to the large working distance, a wide variety of different component geometries can be captured, making the system adaptable with minimal modifications for very different inspection tasks on areas of approximately 4mm².

The Holo Eye is fully dustproof and designed to be robust for operation in an ongoing manufacturing process.

To eliminate vibration effects from the manufacturing process, the exposure time of the laser illumination used to generate the interferograms has been reduced to 1ms.

For inspection objects that have height differences within the feed to the measurement area, the system automatically refocuses digitally during evaluation. In the application, despite vibration stress from the manufacturing process, component defects can be reliably detected with a lateral resolution of 5µm and a depth of at least 2µm on the functional surfaces.

The Holo Eye can be duplicated for faster production applications and is powered by a single laser with an optical switch connected downstream.

The computing power is designed to handle the evaluation algorithms for the parallel operation of 2 systems.



Datasheet


Technical Data


Design Picture: „open Frame“ , l approx. 300mm
protective housing IP20, approx. 150 x 400 x 300mm
Inspection area 4mm2, customizable depending on the object
Resolution lateral 0.7µm2 / height: 1µm
Software parameterizable, according to the application
Laser Kl. III, 1s, with shutter
Measurement time < 0,1s
